Amorphous Metal Core Transformer

Features of Amorphous Metal Core Transformers︰

An excellent product for saving energy which has been qualified by the Bureau Energy Ministry of Economic Affairs︰It is applied to the purpose for private businesses purchasing facilities for saving energy, A private business can get deduction of its income tax by buying Amorphous Metal Core Transformers。

A great product for environmental protection that can decrease exhaust of CO2︰Due to Amorphous material has a less manufacturing procedure than Silicon steel so that can diminish the consumption of energy greatly. We can not only reduce the losses of a power system but also save expense on electricity and fuel .In addition, due to a lower CO2 exhaust, we can minimize air pollution、acid rain and green house effect insidiously。

Amorphous Metal Core Transformers have a more excellent property for saving energy as Harmonic occurs︰In normal circumstance,Amorphous Metal Core Transformers have a very low core loss of about 1/3 ~ 1/4 of general Silicon Steel Transformers,It can be called Ultra-High Efficiency Transformer,Due to converter、U.P.S、Rapid Transit System and furnace are wide spread use in recent years causing Harmonic occurred in power system which may affect its regular operation ,all this can be improved by using Amorphous Metal Core Transformers to increase effects of power systems due to its low losses that makes it a great property on Harmonic resisting and saving for expense of electricity。

A great saving on expense of electricity on account of its low losses.
For example︰
3 phase 60Hz-1000kVA Saving expense of electricity per year Saving losses(kW) x 24 hours x 365 days x expense per degree
Load losses at 60% of average load︰
Amorphous Metal Core Transformer︰3.64 kW
General Silicon steel Transformer︰8.54 kW
Average expense per degree︰
1.56 dollars Saving expense of electricity per year
=(8.54-3.64)x24x365x1.56=66,961dollars
Reducing exhaust of CO2 on account of its low losses
The factor for CO2 conversion︰
0.423 kg/kwh
Reduced quantities of CO2 exhaust︰
(8.54-3.64) x 24 x 365 x 0.423 = 18156 kg/year
Oil-immersed Amorphous Metal Core Transformer (duct type)

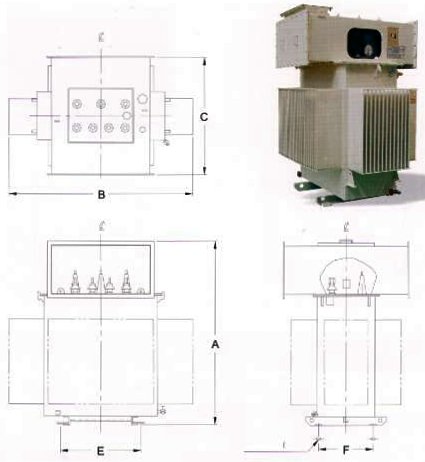

(一)Outline drawing

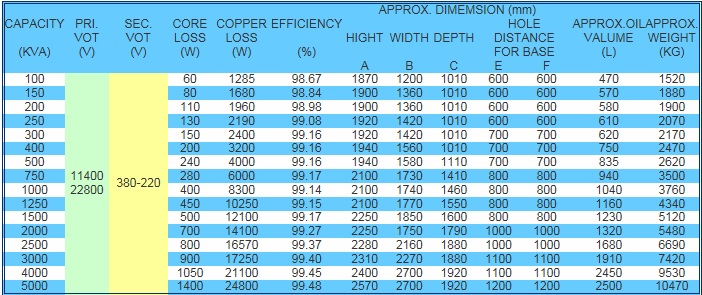

(二)POPERTY、DIMENSION、WEIGHT、OIL VALUME

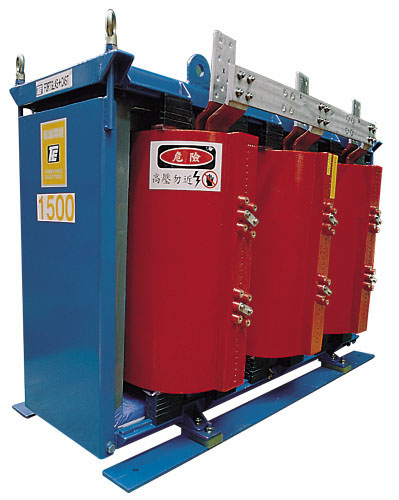

Amorphous Metal Core Cast Resin Transformer

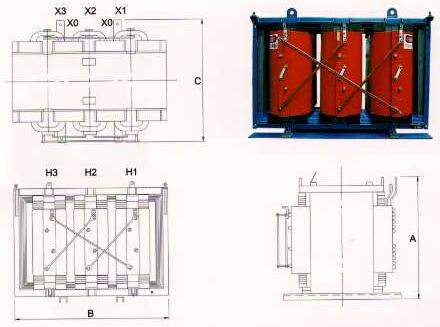

(一)Outline drawing

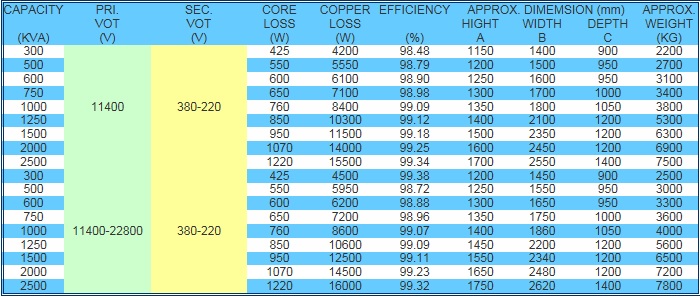

(二)PROPERTY、DIMENSION、WEIGHT
